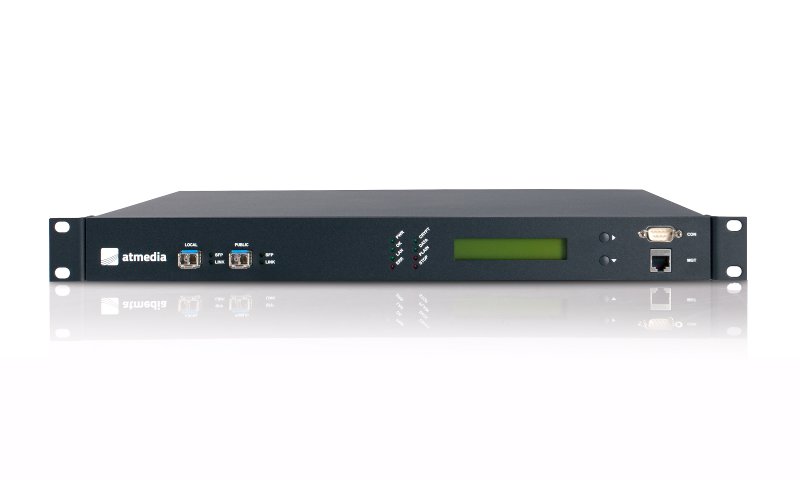

atmedia Network Encryptor
The atmedia Encryptors are safeguarding any layer 2 or layer 3 network communication reliably and without loss of quality. The area of application reaches from encryption of point-to-point connections to complex and large multipoint SD-WAN, MPLS, VPLS or Metro Ethernet and Cloud infrastructures.
The systems are the first choice for the realization of highly available network scenarios where the communication between distributed sites or data centres has to be secured against interception and manipulation.
The atmedia Encryptors implement the network and encryption functionality with programmable FPGA hardware. All security relevant parts of the systems are completely developed and implemented by atmedia. a main security feature is the encryption in combination with secure integrity and replay protection (AES-GCM) for the data plane and the control plane. This works like a “perfect firewall” which protects the customer network against active and passive attacks and increases the Cyber Resilience of critical infrastructures.
Product features of the atmedia Encryptor
Performance
- Full-Duplex real-time encryption at wire speed
- Latency in the microsecond range
- Transparent to VLAN, VXLAN, CoS, MPLS and FCoE
- Compatible to E-Line, E-Tree, E-Lan, VPLS, VPWS and other Ethernet services
- Encryption of unicast, multicast and broadcast traffic
- Jumbo frame support
- Encryption independent of packet size and packet content
- Network integration without any change of infrastructure (bump in the wire)
- No impact on existing redundancy mechanisms
- Hot-swappable line interface support, tuneable XFP support
- Carrier grade equipment
- Very low energy consumption (Green IT)
Security
- Strongest available crypto technology (AES256-GCM, 512bit ECC)
- Quantum-resistant implementation
- Hardware-based random number generation
- Protection against active attacks (Denial of Service) by packet filtering in hardware
- Integrity- and replay protection of transmitted data
- Tamper resistant chassis design and key storage
- Independent of external devices
- Compliant to the requirements of FIPS 140-2 L3 and CC EAL4
- Approved by the German BSI for classified data (VS-NfD, EU Restrint, NATO restricted)
- Fully developed by atmedia in Germany
Available devices
- A100MC (compact):10M/100M throughput with RJ45 copper interfaces
- A100M:100M/1G throughput with RJ45 copper interfaces
- A100MF:100M/1G throughput with SFP interfaces
- A1G/A10G:100M/1G/10G throughput with SFP/SFP+ interfaces
- A4x10G:4 * 1G/10G throughput with SFP/SFP+ interfaces
- A40G:10G/40G with QSFP+ interfaces
- A100G:100G with QSFP28 interfaces
Further product information
Interested in our product?
If you have questions about an atmedia product or need a price information, please contact us:
